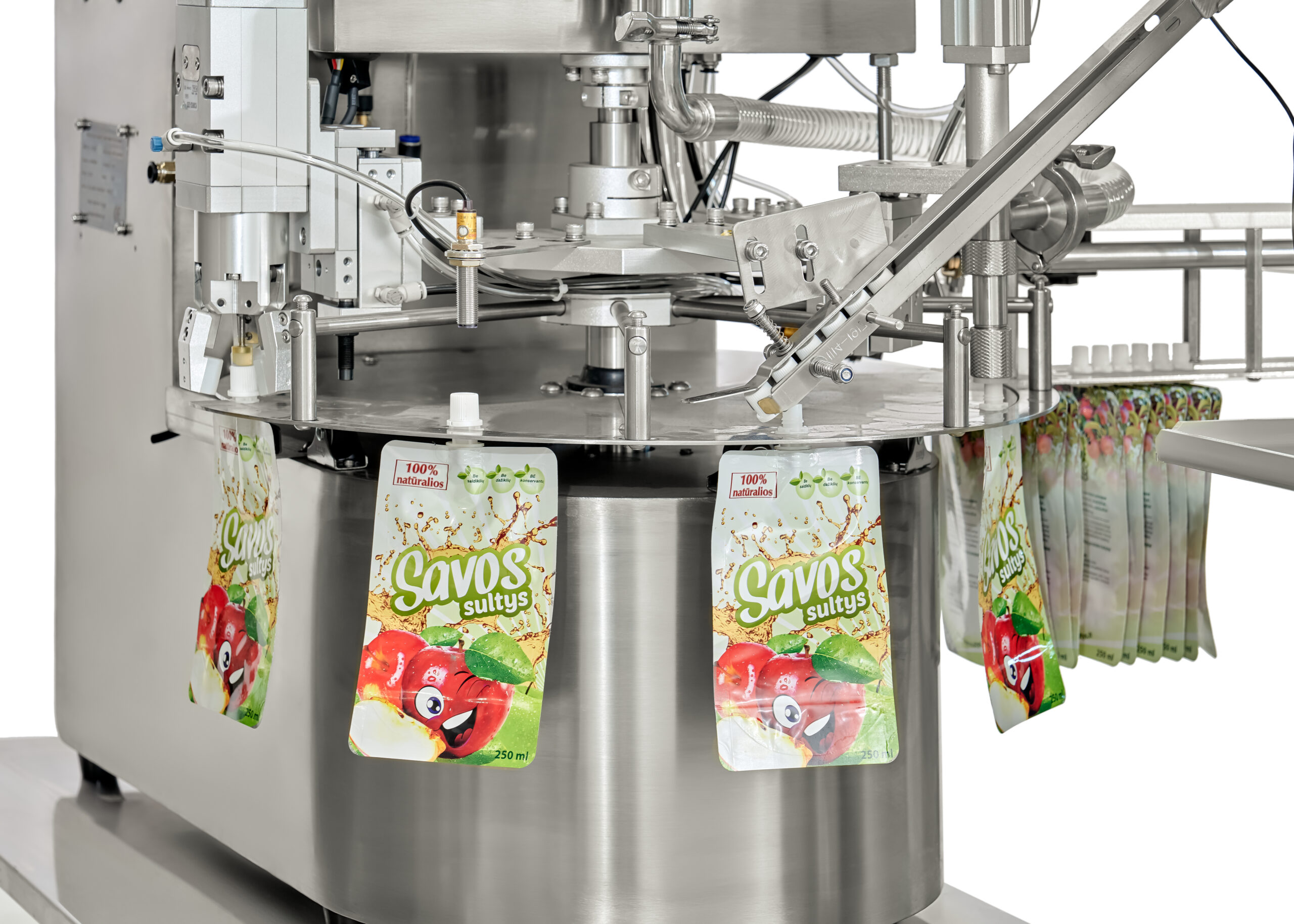

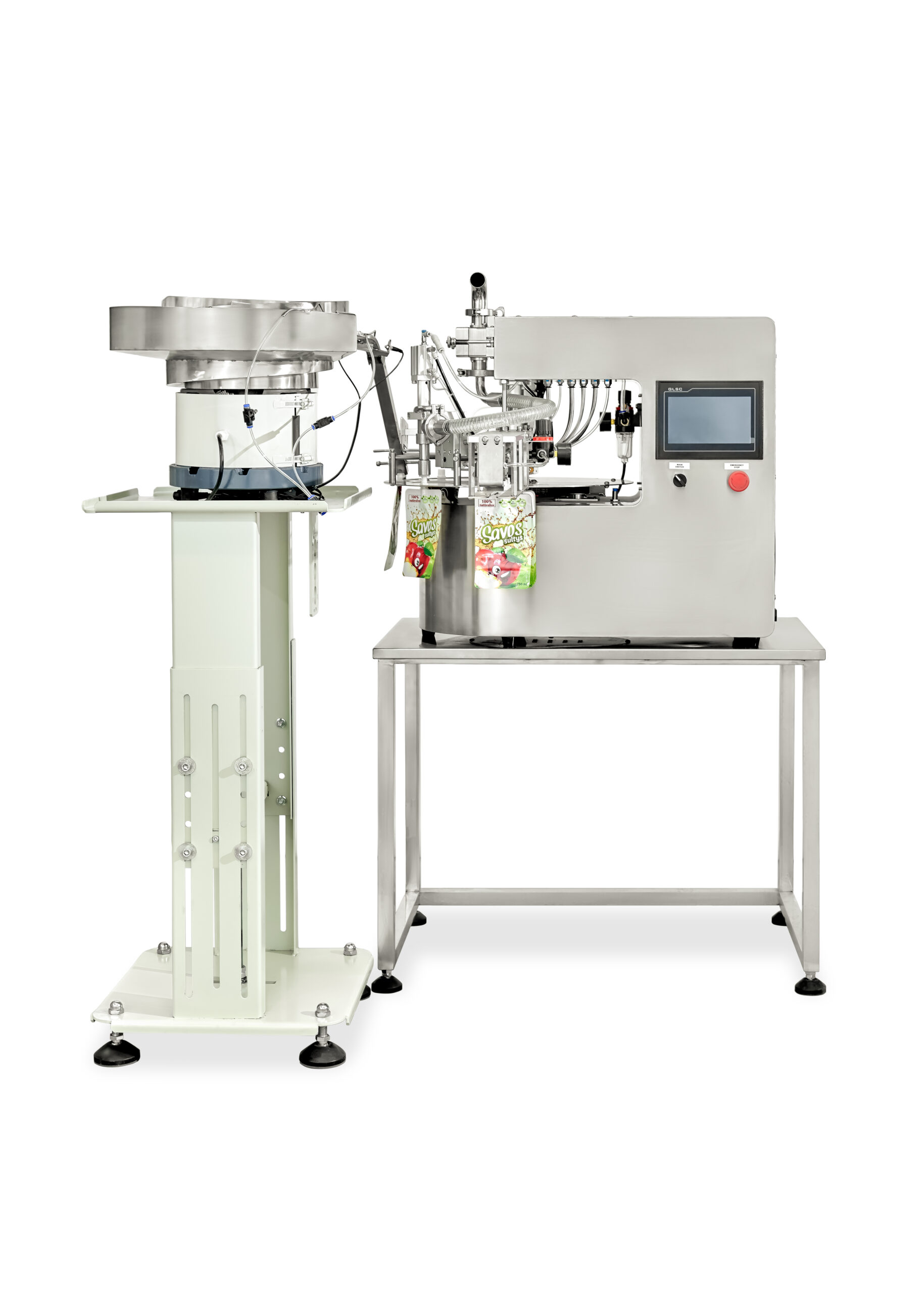

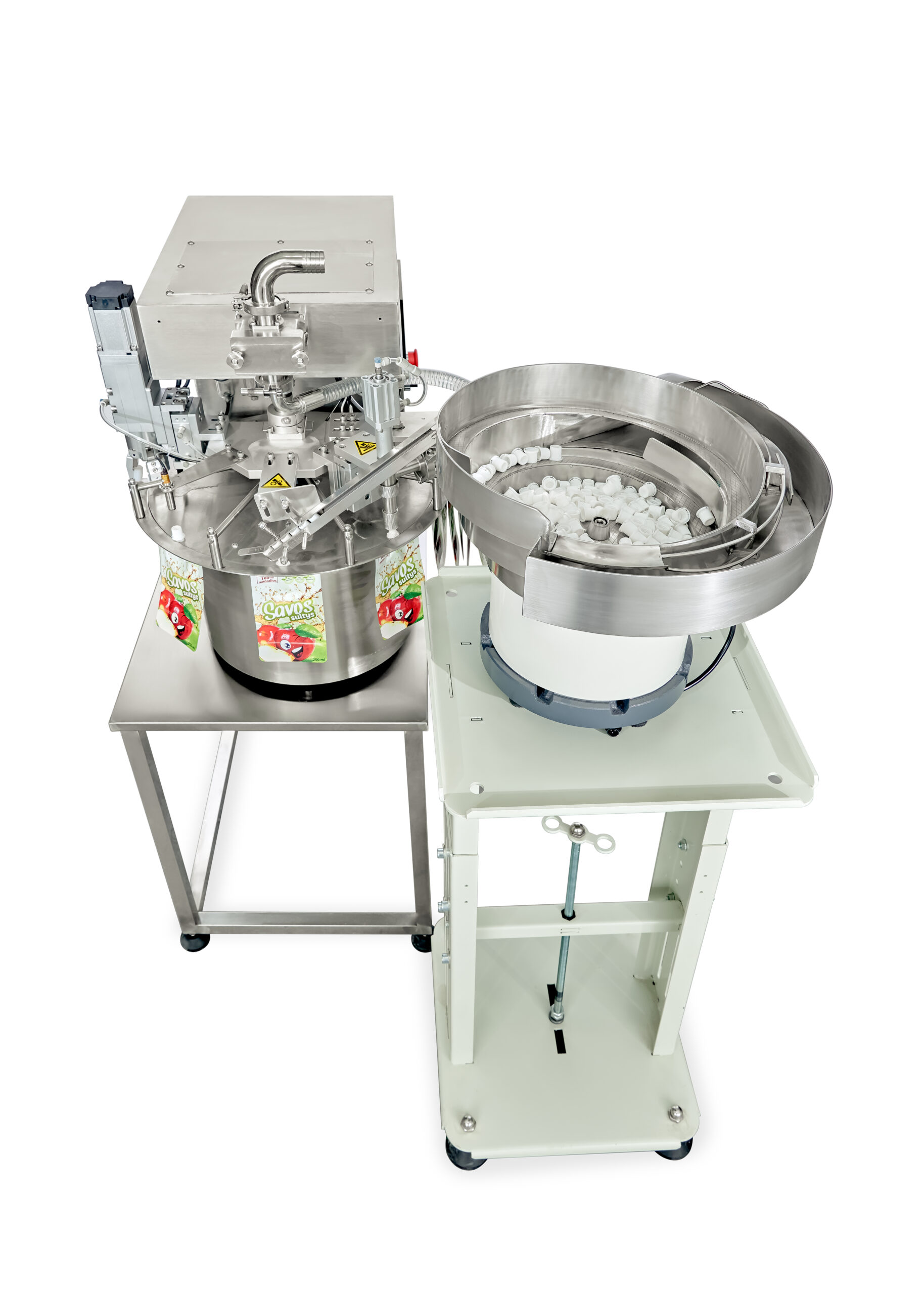

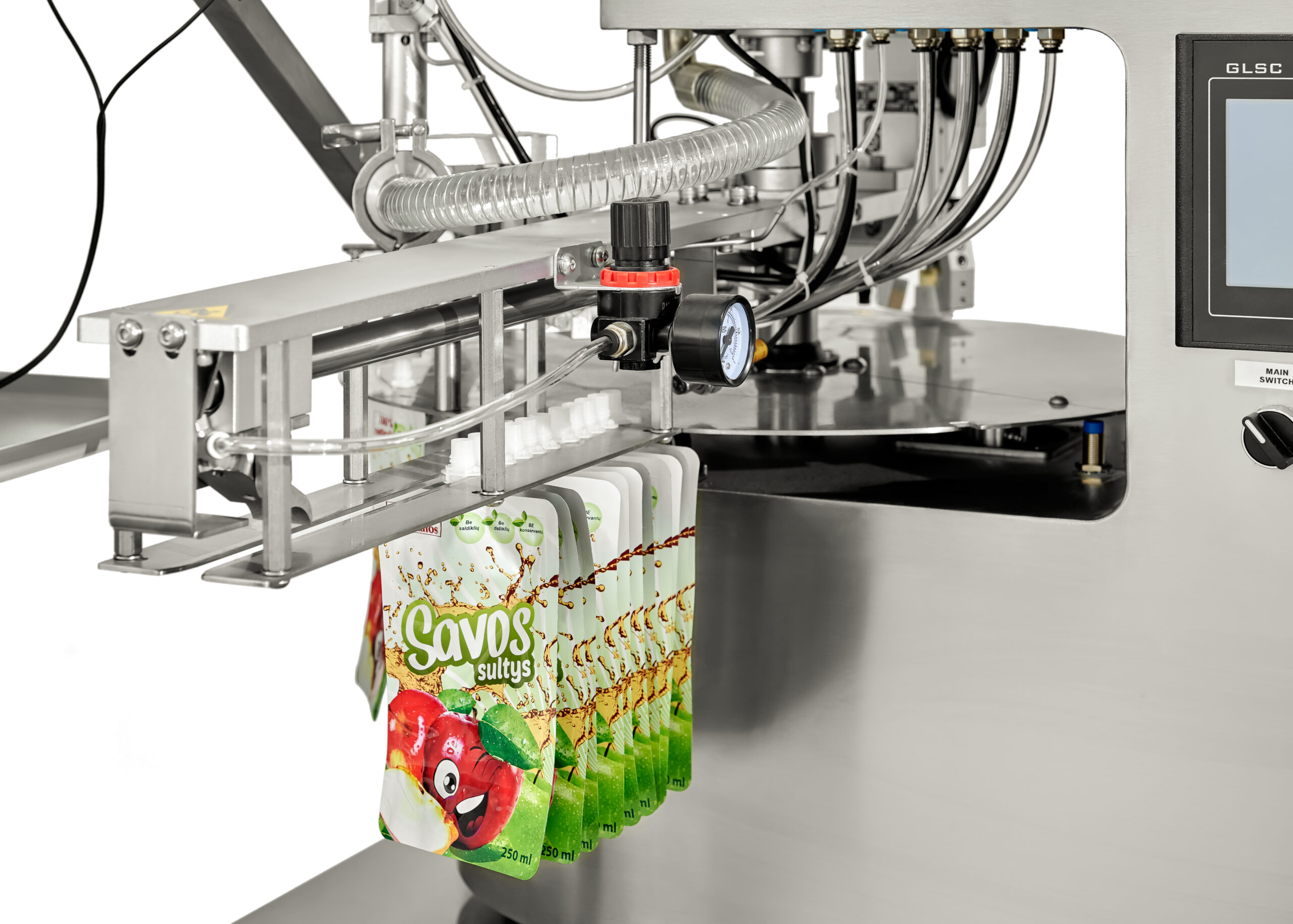

The Automatic Spouted Pouch Filler and Capper is a heavy-duty, monoblock solution designed for the automated filling and sealing of liquid and semi-liquid products. This system integrates pouch feeding, nitrogen injection, and high-torque capping into a single streamlined process, making it the industry standard for fruit juice, puree, and liquid food production.
Key Features
• Fully Automated Operation: Automatic pouch feeding and cap dispensing for continuous production.
• Broad Volume Range: Suitable for spouted pouches from 50 ml to 1500 ml.
• Hot-Fill Compatible: Designed for hot filling up to 90°C with heat-resistant components.
• Shelf-Life Preservation: Integrated nitrogen injection helps maintain product quality and freshness.
• Universal Spout Handling: Adjustable for standard spout sizes from 8.6 mm to 16 mm+.
• Precise Dosing: Self-priming gear pump ensures accurate filling of both liquids and purees.
Technical Advantages
• PLC Touchscreen Control: Easy adjustment of filling volume, speed, and nitrogen injection settings.
• Hygienic Construction: Made from food-grade stainless steel for easy cleaning and food-safe operation.
• Reliable Safety Features: Sensors prevent filling without a pouch and stop the machine when caps are unavailable.
Applications
• Beverages: Natural fruit juices, smoothies, and syrups.
• Food: Purees, baby food, sauces, condiments, and honey.
• Non-Food: Liquid detergents, soaps, and cosmetics.
Technical Specifications
• Capacity: Up to 1000 pouches/h (250 ml pouches)
• Filling Range: 50–1500 ml
• Filling Temperature: Up to 90°C
• Pump Type: Self-priming gear pump
• Compatible Spout Sizes: 8.6 mm, 10 mm, 13 mm, 16 mm+
• Gas Injection: Nitrogen (N₂) after filling
